Brian Southgate
Date:   Mon, 08 Jan 2001 15:59:58 -0600

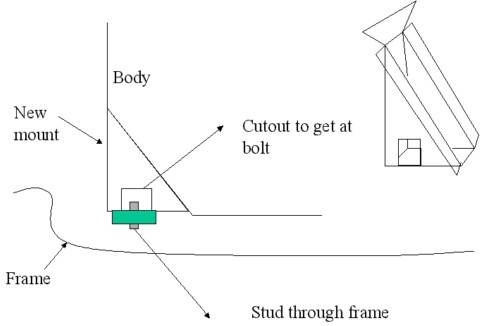

Hello Mike you said you would like a photo of our HenryJ frame. Here are a couple of the frame. You must remove the 2 front mounts and construct new ones. Here is a drawing of how it could be done.

To get the J frame to fit you will have to weld a
1 X 3 inch box onto the outside of the J frame
and then slip it inside the S_10 Frame and
gusset properly.

Brian Southgate

Brians Current Project
Mounting a S10 Front suspention to a Henry J frame
When I first started my own Henry J project. I was looking for others that may have used a S10 front suspention similar to the one that I was thinking of using. I found a couple people willing to help and give me some advice on what to look for. Brian Southgate was one of those people.He sent some photos with his advice. I thought I would share them with you.
